Femtomolar and locus-specific detection of N6-methyladenine in DNA by integrating double-hindered replication and nucleic acid-functionalized MB@Zr-MOF | Journal of Nanobiotechnology

Operation precept of the electrochemical biosensor

The precept of the electrochemical biosensor for ultrasensitive m⁶A DNA detection at a selected website by combining double-hindered replication with LP@MB@Zr-MOF was illustrated in Scheme 1. Partially A, Zr-MOF was synthesized through the use of a facile one-pot solvothermal response with NH₂-BDC because the ligand and Zr⁴⁺ because the metallic nodes. Then, huge quantities of electroactive substrate MB have been packed into Zr-MOF owing to its adverse floor potential and excessive porosity, forming MB@Zr-MOF complicated. Subsequently, the LP was linked with MB@Zr-MOF by Zr–P bonds, forming LP@MB@Zr-MOF electrochemical tag. The biosensing steps have been proven partially B. Goal DNA which was divided into two elements together with CP and LP recognition area by m⁶A website or A website was launched and hybridized with CP. When there was an A website on the goal DNA, KF DNA polymerase stabilized and replicated the mismatch A–C with the existence of sufficient Ag^I and dNTPs (with out dTTP). Because of this, the LP recognition area heading in the right direction DNA could be blocked, resulting in the failed binding of LP@MB@Uio-66 to electrode floor. Nonetheless, when there was a m⁶A website heading in the right direction DNA, the incorporation of the mismatched C base into CP was stopped owing to the double-hindered replication brought on by m⁶A and the instability of m⁶A–Ag^I–C. Due to this fact, LP recognition area hybridized with the LP@MB@Zr-MOF, producing apparent electrochemical sign. Via the sensing technique, goal DNA with particular m⁶A website was clearly distinguished from these with regular A website. Integration of the distinctive double-hindered replication and the wonderful electrochemical exercise of MB@Zr-MOF, the technique realized ultrasensitive detection in the direction of particular m⁶A website in DNA.

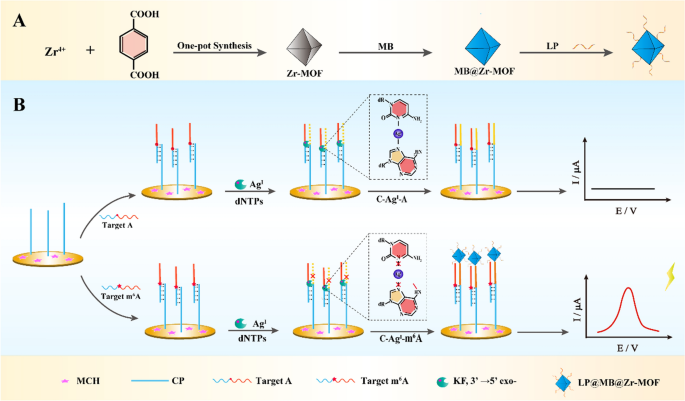

A The preparation of LP@MB@Zr-MOF electrochemical tag. B Schematic illustration of the biosensing protocol for m⁶A DNA detection

Characterization of the LP@MB@Zr-MOF

Transmission electron microscopy (TEM), FT-IR spectra, and Zeta potential experiment have been carried out to characterize the LP@MB@Zr-MOF. TEM pictures confirmed that the Zr-MOF (Fig. 1A) and MB@Zr-MOF crystals (Fig. 1B) had an identical diameter, demonstrating that the little affect of MB on the morphologies of the ready Zr-MOF. As depicted in Fig. 1C, FT-IR spectra exhibited the brand new peaks within the MB@Zr-MOF in contrast with that in Zr-MOF, indicating that MB was successfully encapsulated in Zr-MOF. As illustrate in Fig. 1D, the Zeta potential worth of the Zr-MOF, LP@Zr-MOF, and LP@MB@Zr-MOF was about 3.8 mV, − 10.32 mV, and − 11.82 mV, respectively, demonstrating that Zr-MOF was modified by LP and MB. These outcomes verified the profitable synthesis of the LP@MB@Zr-MOF electrochemical indicator.

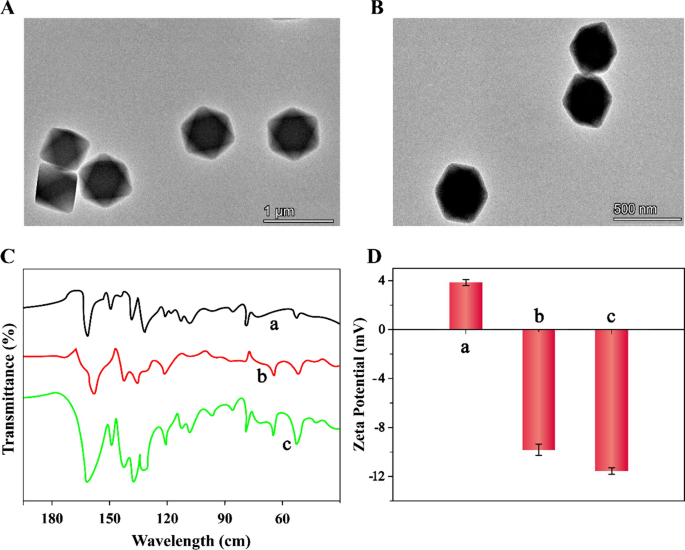

Characterization of the LP@MB@Zr-MOF. A TEM picture of the Zr-MOF and B MB@Zr-MOF. C FT-IR spectra outcomes of a MB, b Zr-MOF and c MB@Zr-MOF. D Zeta characterization values of a Zr-MOF, b LP@Zr-MOF and c LP@MB@Zr-MOF

Characterization of the modification process on an electrode

CV and EIS have been carried out to characterize the stepwise electrode modification. Further file 1: Fig. S1A gave the CV curves of assorted electrodes. It was apparent {that a} pair of redox peaks have been noticed at  ~ 0.14 V and  ~ 0.24 V on the GE (curve a). When the CP and MCH have been immobilized on the electrode floor by flip, the height present continued to lower (curve b and c). Then, the binding of m⁶A DNA to the modified electrode leaded to a lower of peak present once more (curve d). It is perhaps defined that biomolecular modification blocked the electron-transfer between the electrolyte and electrode. Nonetheless, when the LP@MB@Zr-MOF electrochemical indicator hybridized with the m⁶A DNA, the height present elevated (curve e) owing to the electroactivity of MB@Zr-MOF. To guage the affect of biomolecules anchored on the electrodes, EIS was carried out (Further file 1: Fig. S1B). The diameter of semicircle represented the electron-transfer resistance (Ret). It was discovered that the biomolecules on the electrode floor restricted the cost switch once they have been immobilized on the electrode floor. Nonetheless, when the LP@MB@Zr-MOF was launched, the Ret decreased (curve e). These outcomes not solely demonstrated the success of modification processes, however preliminarily confirmed the feasibility of the developed biosensor.

Feasibility of the sensing technique for m⁶A DNA detection

First, the double-hindered replication was investigated by PAGE experiment. As proven in Fig. 2A–C, lane 1, 2 and three, wherein every had a single band, represented CP, goal A (wild-type DNA), and goal m⁶A DNA, respectively. See the leads to Fig. 2C, the band location of the dsDNA-1 hybridized by CP and goal A (lane 4) is in line with that of dsDNA-2 constructed by CP and goal m⁶A DNA (lane 5), indicating that m⁶A website didn’t have an effect on the hybridization of dsDNA. As seen in Fig. 2A, dsDNA, KF exo⁻, and dNTPs have been combined and incubated at 37 °C for five min (lane 4 and 5), 10 min (lane 6 and seven) and 15 (lane 8 and 9) min. Nonetheless, each dsDNA-1 and dsDNA-2 have been replicated within the first 5 min extension response. Due to this fact, goal m⁶A DNA couldn’t successfully be distinguished solely relying on the obstacle of m⁶A to DNA synthesis. As proven in Fig. 2B, when KF exo⁻, Ag^I, dNTPs (with out dTTP), and dsDNA have been combined at 37 °C for 10 min (lane 4 and 5), 15 min (lane 6 and seven) and 20 min (lane 8 and 9). Lane 4–7 indicated that dsDNA-1 was prolonged, however the extension of dsDNA-2 was hindered. Thus, goal m⁶A DNA was distinguished successfully primarily based on the double-hindered replication system.

Investigation of the feasibility of the developed biosensor. A–C Verification of the excessive selectivity of double-hindered replication in the direction of goal m⁶A DNA by PAGE experiments. The concentrations of all DNA substrates have been 1 μM besides goal. D DPV alerts responding to a clean management, b 1 nM goal A, and c 1 nM goal m⁶A DNA

Second, every response strategy of the sensing technique was analyzed by measuring DPV sign, and the outcomes have been depicted in Fig. 2D. In comparison with clean management that didn’t embody goal A and goal m⁶A DNA (curve a), a really low DPV sign was detected responding to 1 nM goal A (curve b), which was as a result of the Ag^I-mediated replication blocked LP recognition area. Nonetheless, within the presence of 1 nM goal m⁶A DNA, a big DPV sign was noticed (curve c). This was attributed to the binding of LP@MB@Zr-MOF to LP recognition area, producing amplified electrochemical sign. These outcomes clearly demonstrated that the constructed biosensor possessed excellent capacity to particularly distinguish m⁶A DNA.

Optimization of the experiment variables of the biosensing technique

To acquire one of the best efficiency of the electrochemical biosensor, three essential experimental parameters have been optimized. First, the double-hindered replication time was evaluated. As illustrated in Fig. 3A, the DPV sign elevated with the incubation time till 15 min when the sign from goal m⁶A DNA to background from goal A (S/B) ratio reached the top. After that, the DPV sign decreased, as a result of the DNA polymerase nonspecifically extended the CP if the incubation time was too lengthy.

Optimization of the experimental parameters. Impact of A the double-hindered replication time and B concentrations of MB loaded on Zr-MOF on DPV sign responding to 1 nM goal m⁶A DNA. All outcomes expressed as imply  ±  normal variation (n  = 3)

Second, the focus of MB loaded on Zr-MOF was optimized. As proven in Fig. 3B, DPV sign exhibited an upward pattern with the rise of MB focus from 0.5 to 4 μM MB. Nonetheless, when the focus of MB surpassed 2 μM, an apparent background noise was noticed, ensuing from the nonspecific adsorption of superfluous MB on the electrode floor. Thus, the largest S/B ratio was obtained when the focus of MB loaded on Zr-MOF was 2 μM.

Third, we evaluated the affect of Zr-MOF focus on DPV sign. As depicted in Further file 1: Fig. S2, the completely different concentrations of Zr-MOF from 0.5 to 4 mg/mL have been chosen to display one of the best focus with optimum S/B ratio. Clearly, 1 mg/mL of Zr-MOF generated probably the most passable S/B ratio that was taken as one of the best situation for the next experiment. Subsequent, the response buffer containing varied focus of AgNO₃ from 50 to 150 μM was examined. As proven in Further file 1: Fig. S3, the DPV sign and the S/B ratio elevated regularly with the focus of AgNO₃ and reached the best peak at 100 μM AgNO₃. After that, the sign declined sharply. Thus, the response buffer containing 100 μM AgNO₃ was chosen for different experiments.

Sensitivity of the developed biosensor

Underneath optimum experimental circumstances, the sensitivity of the biosensor was analyzed within the presence of various concentrations of goal m⁶A DNA starting from 1 fM to 1 nM. The DPV sign elevated with the focus of goal m⁶A DNA (Fig. 4A), and the nice linear relationship between the DPV response and the logarithm of goal m⁶A DNA focus starting from 1 fM to 1 nM was obtained (Fig. 4B). In accordance with the mathematical outcomes, the decided linear regression equation was i  = 0.85 lg C  +  1.05 (correlation coefficient R²  =  0.9976, the place i and C represents DPV sign and the focus of goal m⁶A DNA, respectively). The low detection of restrict (LOD) for goal m⁶A DNA was 0.89 fM in keeping with the 3σ rule. The LOD was decrease than most of beforehand reported sensing strategies in the direction of m⁶A DNA [14, 19, 20, 23], benefiting from the highly effective sign amplification functionality of MB@Zr-MOF. Furthermore, the biosensor was time-saving in comparison with conventional methods, the detailed dialogue was depicted in Further file 1: Desk S3.

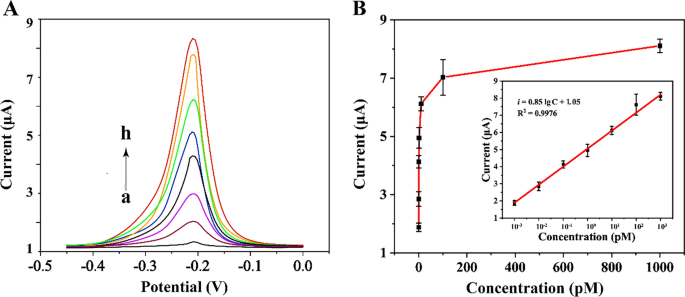

Analysis of the sensitivity of the biosensor. A DPV curves responding to completely different concentrations of the goal m⁶A DNA: a 0 pM, b 0.001 pM, c 0.01 pM, d 0.1 pM, e 1.0 pM, f 10 pM, g 100 pM, h 1000 pM. B The linear relationship between DPV sign and the logarithm of goal m⁶A DNA focus. All outcomes expressed as imply  ±  normal variation (n  = 3). *Unpaired t check and one-way ANOVA with Tukey pairwise comparability (p  < 0.001)

Selectivity and stability of the biosensor

The selectivity of the proposed technique was evaluated by changing A website with regular T, C, and G bases, which have been corresponding to focus on T, goal C, and goal G, respectively. As proven in Fig. 5A, the DPV alerts of those interfering sequences have been considerably an identical to that of goal A, and negligible change of electrochemical sign was noticed. Nonetheless, the DPV sign of goal m⁶A DNA had a big enhance, which was about 4.5-fold larger than that of those interfering sequences. These outcomes demonstrated that the technique exhibited excessive constancy in discriminating goal m⁶A DNA and different unmodified genomic DNA, which was attributed to the nice selectivity of double-hindered replication in the direction of goal m⁶A DNA.

A Evaluation of the selectivity of the developed biosensor. The concentrations of all DNA sequences have been 1 nM. B Investigation of the steadiness of the developed biosensor at completely different pH. All outcomes expressed as imply  ±  normal variation (n  = 3). *Unpaired t check and one-way ANOVA with Tukey pairwise comparability (p  < 0.001)

Moreover, the steadiness of the developed biosensor was evaluated. Owing to acidic and alkaline situation could destroy the construction of LP@MB@Zr-MOF and disturb the loading of MB, pH may very well be a key parameter for the steadiness of the biosensor. As proven in Fig. 5B, the LP@MB@Zr-MOF may keep stabilization with pH values altering from 6 to eight, and the best DPV sign was obtained when the pH was about 8. As well as, the height present values nearly stored unchanged although the elements of the developed biosensor have been saved at 4 °C for 15 days (Further file 1: Fig. S4). These outcomes demonstrated that the nice stability of the develop biosensor.

Scientific applicability of the biosensor

To evaluate the applicability of the electrochemical biosensor in the direction of detection of goal m⁶A DNA in physiological surroundings, the restoration check was firstly carried out. In normal addition experiments, the comparable outcomes of various concentrations of goal m⁶A DNA at 10 fM, 1 pM, 100 pM in 20-fold diluted serum was illustrated in Further file 1: Desk S2. The recoveries charge was within the vary of 96.65–103.02%, and the RSD was within the vary of 4.34–5.87%. Moreover, with the intention to check the applicability of this biosensor in actual cells, the m⁶A DNA expressed in HepG2 cells and NeHepLxHT cells was analyzed by our developed methodology and ELISA package [11]. As proven in Further file 1: Fig. S5, with the growing of focus of HepG2 cells (a–c), the corresponding DPV alerts elevated proportionably, suggesting that the produced sign was extremely depending on the focus of m⁶A DNA in HepG2 cells. And the sign of HepG2 cells (c) was clearly larger than that of NeHepLxHT cells (d) on the identical focus, which was matched with the earlier studies [37]. Moreover, the outcomes of the electrochemical biosensor have been in line with that of ELISA package. What’s extra, in contrast with the business ELISA package whose value is about RMB 6000–7000 for 48 assays [38], the proposed biosensor is less expensive. These outcomes proved that the proposed biosensor exhibited dependable capability for sensing m⁶A DNA in cells and possessed nice potential in scientific utility.
